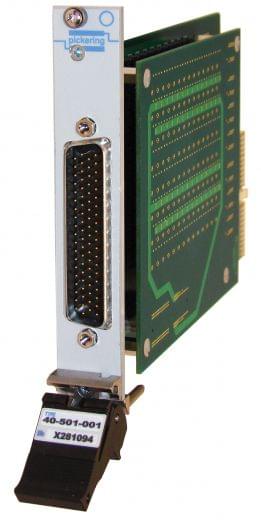

64x4,0.15Amp,100v,1-Pole, PXI Solid State Very High Density Matrix,40-501-001

The 40-501 is a very high density matrix using solid state switching configured as a 64x4 1-pole matrix in a single slot 3U PXI module. It is ideal for applications requiring fast operation and a long service life with frequent switch operations at high voltages. Since the design is based on solid state relays the matrix has no wear out mechanism.

  • Very High Density Matrix
  • Solid State 1-Pole Matrix
  • High Density 64x4 Configuration
  • 150mA Hot or Cold Switching
  • 350mA Crosspoint Inrush Current
  • 100 Volt Rating
  • 3A Y Bus Rating
  • Fast Switch Operation and Long Service Life
  • VISA/IVI Drivers Supplied For Windows XP/Vista/7/8
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
X Size 64
Y Size 4
Banks 1
Poles 1
Max I (A) 0.15
Max V DC 100
Brand Pickering Interfaces
