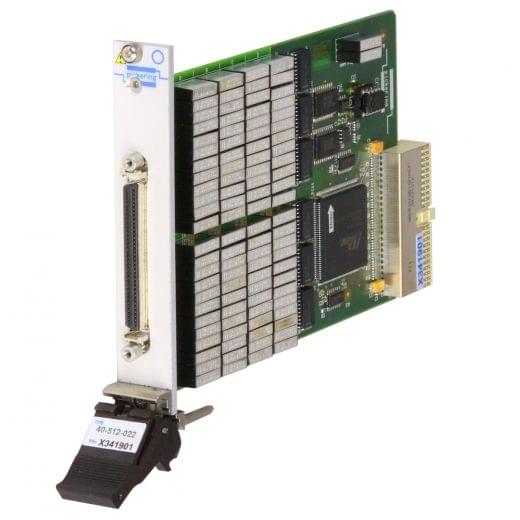

Dual12x4,2-Pole Switching PXI Matrix,40-511-022

Features
  • Reed Relay Matrix Card
  • 12x4,Dual 12x4, 24x4 or 12x8
  • 1-Pole, 2-Pole or Screened Versions
  • Large Matrices Built Using Multiple Modules
  • Screened 50 Ohm Option with 50MHz Bandwidth
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Fast operating speed <500us
  • Switch up to 150V, 1.2A with 20W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Self-Test Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
X Size 12
Y Size 4
Banks 2
Poles 2
Max I (A) 1.2
Max V DC 150
Brand Pickering Interfaces
