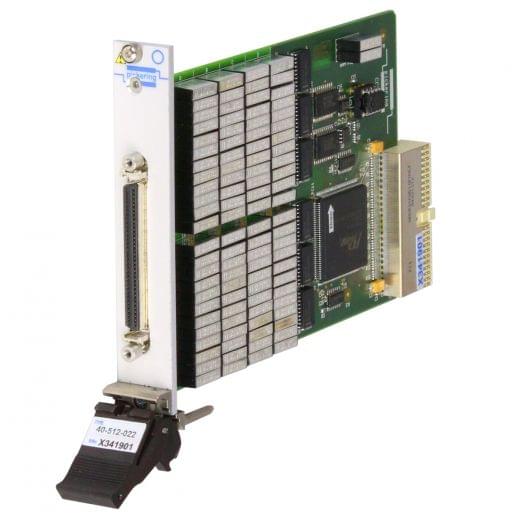

24x4,2-Pole Switching PXI Matrix,40-513-022

The 40-510 series of matrix modules feature a wide range of selectable switching configurations (12x4,dual 12x4,12x8 and 24x4). Typical applications include signal routing in ATE and data acquisition systems. Available reed relay formats are 1-pole, 2-pole and 1-Pole screened. The screened version is suitable for switching signals up to 50MHz. Larger matrices may be constructed by Daisy Chaining the common signals from multiple PXI modules.

Features
  • Reed Relay Matrix Card
  • 12x4,Dual 12x4, 24x4 or 12x8
  • 1-Pole, 2-Pole or Screened Versions
  • Large Matrices Built Using Multiple Modules
  • Screened 50 Ohm Option with 50MHz Bandwidth
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Fast operating speed <500us
  • Switch up to 150V, 1.2A with 20W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Self-Test Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
X Size 24
Y Size 4
Banks 1
Poles 2
Max I (A) 1.2
Max V DC 150
Brand Pickering Interfaces
