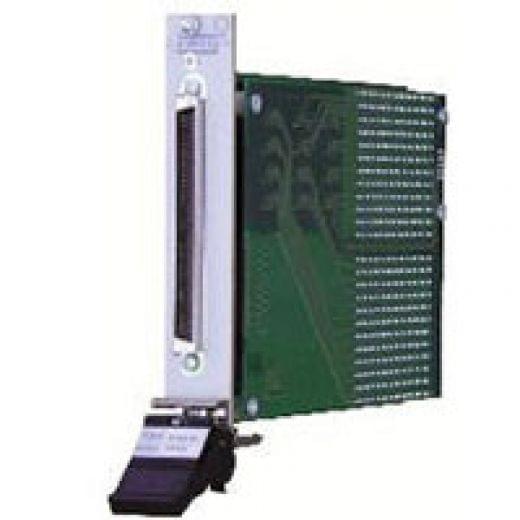

Dual12x8,2-Pole Switching PXI Matrix,40-522-022

Medium density PXI dual 12x8, 2-pole matrix - it is also available in reed relay formats of 2-pole and 1-pole screened (see "also in this range" on right). The screened version is suitable for switching signals up to 50MHz. Typical applications include signal routing in ATE and data acquisition systems. The two banks may be used for operating a 4-wire measurement system (bank-1 for source, bank-2 for measure). Larger matrices may be constructed by daisy chaining the common signals from multiple PXI Modules.

Features
  • Medium density reed relay matrix card
  • 1-Slot PXI (Compact PCI) module
  • Large matrices built using multiple modules
  • Screened 50ohm option with 50MHz bandwidth
  • Uses high reliability Pickering ruthenium reed relays for maximum performance
  • Fast operating speed <500us
  • Switch up to 150Volts, 1.25A with 20W max power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
X Size 12
Y Size 8
Banks 2
Poles 2
Max I (A) 1.25
Max V DC 150
