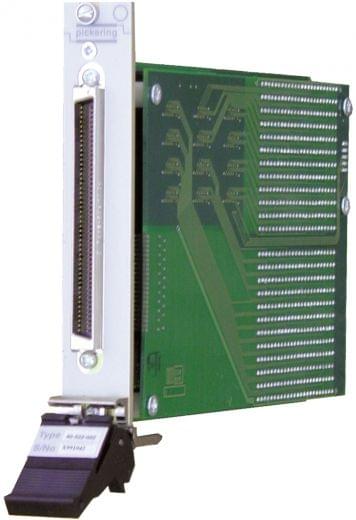

Single44x4,1-Pole,Switching Matrix,40-523-021

The 40-523-021 is a 44x4 high density 1-pole reed relay matrix. Other available reed relay formats are 2-pole and 1-pole screened. The screened version is suitable for switching signals up to 50MHz. Model 40-524 is a similar matrix, available in single pole 46x4 format. Typical applications include signal routing in Functional ATE and data acquisition systems. These PXI matrix cards are constructed using high reliability Ruthenium Electro-Plated Reed Relays, offering >10e8 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

  • Medium density reed relay matrix module
  • 1 Slot PXI (CompactPCI) module
  • Large matrices built using multiple modules
  • Screened 50Ohm option with 50MHz bandwidth
  • Uses high reliability Pickering ruthenium reed relays for maximum performance
  • Fast operating speed <500us
  • Switch up to 150Volts, 1.25A with 20W max power
  • VISA, IVI and Kernel Drivers supplied for Windows
  • Supported by PXI or LXI chassis
  • Diagnostic tool available (PI-MXT)
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
X Size 44
Y Size 4
Banks 1
Poles 1
Max I (A) 1.25
Max V DC 150
Brand Pickering Interfaces
