Single44x4,1-Pole,Screened Matrix,40-523-021-S

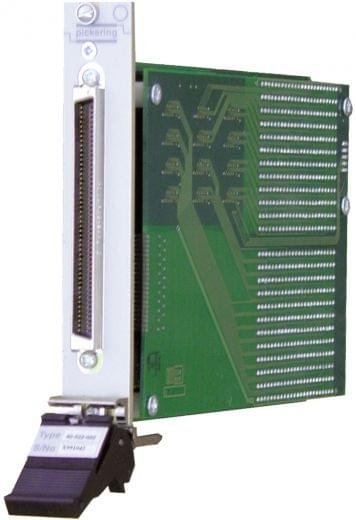

The 40-523-021-S is a 44x4 high density 1-pole screened reed relay matrix. Other available reed relay formats are 1 and 2-pole non-screened. The screened version is suitable for switching signals up to 50MHz. Model 40-524 is a similar matrix, available in single pole 46x4 format. Typical applications include signal routing in Functional ATE and data acquisition systems. These PXI matrix cards are constructed using high reliability Ruthenium Electro-Plated Reed Relays, offering >10e8 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

  • High Density Reed Relay Matrix Module
  • 1 Slot PXI (CompactPCI) Module
  • 1-Pole, 2-Pole or Screened Versions
  • 46x4 Matrix Option For 1-Pole Switching
  • Large Matrices Built Using Multiple Modules
  • Uses High Reliability Pickering Ruthenium Reed Relays For Maximum Performance
  • Fast Operating Speed <500us
  • Switch up to 150Volts, 1.25A with 20W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported By PXI or LXI Chassis
  • Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
X Size 44
Y Size 4
Banks 1
Poles 1
Max I (A) 1.25
Max V DC 150
Brand Pickering Interfaces
