Single46x4,1-Pole,Switching Matrix,40-524-021

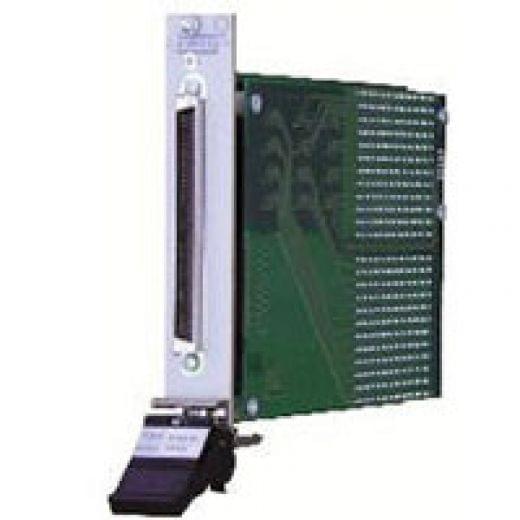

The 40-524-021 is a 46x4 high density 1-pole reed relay matrix.Typical applications include signal routing in Functional ATE and data acquisition systems. These PXI matrix cards are constructed using high reliability Ruthenium Electro-Plated Reed Relays, offering >10e8 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

Features
  • Medium density reed relay matrix card
  • 1 Slot PXI (CompactPCI) Module
  • 1-Pole, 2-Pole or Screened Versions
  • 46x4 Matrix Option For 1-Pole Switching
  • Large Matrices Built Using Multiple Modules
  • Uses High Reliability Pickering Ruthenium Reed Relays For Maximum Performance
  • Fast Operating Speed <500us
  • Switch up to 150Volts, 1.25A with 20W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported By PXI or LXI Chassis
  • Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
X Size 46
Y Size 4
Banks 1
Poles 1
Max I (A) 1.25
Max V DC 150
Brand Pickering Interfaces
