Single92x4,1-Pole,Switching Matrix,40-535-021

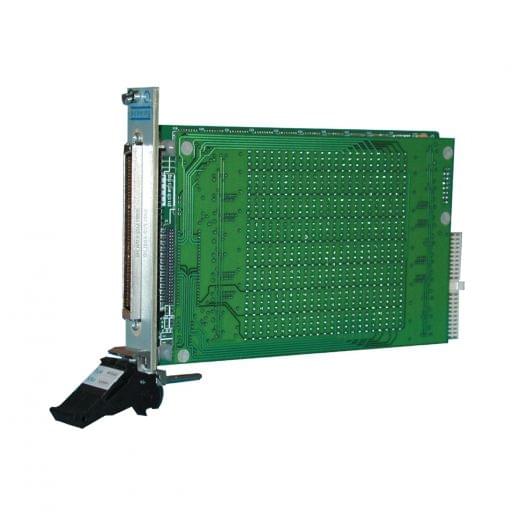

Model 40-535-021 is a very high density single 1-pole 94x4 matrix module. It is also available in dual 1-pole 44x4 or single 1-pole 44x8 reed relay formats: Typical applications include signal routing in Functional ATE and data acquisition systems. These PXI matrix modules are constructed using high reliability Sputtered Ruthenium Reed Relays, offering 109 operations to give maximum switching confidence with long life and stable contact resistance. Larger matrices may be constructed bytructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

  • 1-Slot PXI (CompactPCI) Card
  • Also available in dual 92x4 and 44x8 configurations
  • Large matrices built using multiple cards
  • Uses high reliability Pickering ruthenium reed relays for maximum performance
  • Fast operating speed <1000us
  • Switch up to 150Volts with 10W max power
  • Max switch current 0.5A
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported By PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
X Size 92
Y Size 4
Banks 1
Poles 1
Max I (A) 0.5
Max V DC 150
Brand Pickering Interfaces
