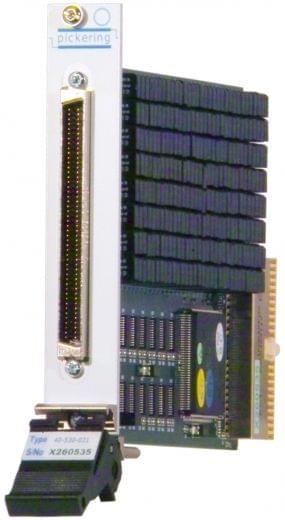

Single32x8,1-Pole,MatrixCard,40-530-021

Features
  • High-Density Reed Relay Matrix with 256 Crosspoints
  • 1-Pole 32x8 Matrix
  • 1-Slot PXI (CompactPCI) Card
  • Large Matrices Built Using Multiple Modules
  • Uses High Reliability Ruthenium Reed Relays for Maximum Performance
  • Fast Operating Speed <1000us
  • Switch up to 150Volts, with 20W Max Power
  • Max Current 1A Cold or Hot Switching
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
X Size 32
Y Size 8
Banks 1
Poles 1
Max I (A) 1
Max V DC 150
Brand Pickering Interfaces
