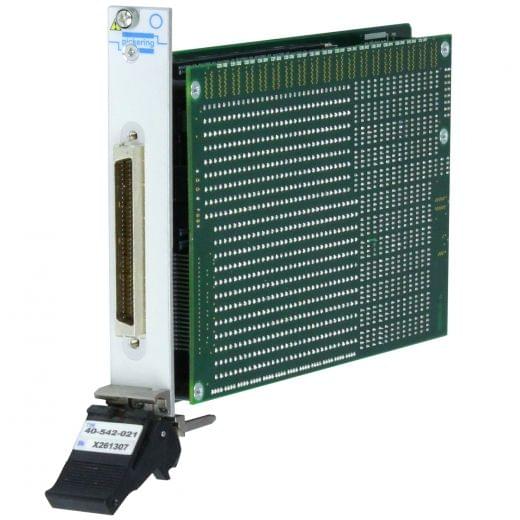

Single66x8,1-Pole,Matrix,40-541-021

The highest density single slot PXI reed relay matrix module on the market today. This range also includes a 132x4 and 33x16 reed relay matrices with 1-pole switching. They are constructed using high reliability sputtered ruthenium reed relays, offering >10e9 operations to give maximum switching confidence with long life and stable contact resistance. Typical applications include signal routing in Functional ATE and data acquisition systems.

Features
  • Uses high-reliability Pickering ruthenium reed relays for maximum performance
  • Minimizes cost using partially populated configurations - available for all models in this range
  • Switch up to 150Volts, 0.5A with 10W max power
  • Fast operating speed <300us
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Ease of maintenance & repair through the use of leaded relays
  • Supported by our eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
X Size 66
Y Size 8
Banks 1
Poles 1
Max I (A) 0.5
Max V DC 150
Brand Pickering Interfaces
