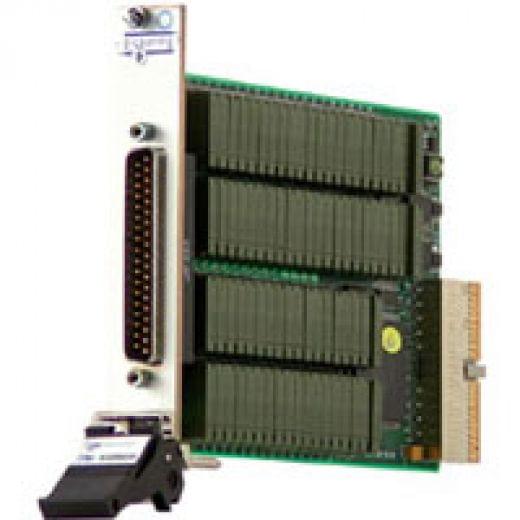

Model 40-545-001 is a high density single 1-pole 10x4 power matrix module. It is also available in dual 10x4, single 10x8 or single 20x4 relay formats: Typical applications include power routing in Functional ATE systems, specifically automotive electronics, for example testing of Engine Management Units. Larger matrices may be constructed bytructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.

Features
  • Single Slot PXI 3U High Density Power Matrix Module
  • Available in the Following Configurations - 10x4, Dual 10x4, 10x8 and 20x4
  • 2 Amp Switching
  • 110VDC/250VAC, 90W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
X Size 10
Y Size 4
Banks 1
Poles 1
Max I (A) 2
Max V DC 400
Brand Pickering Interfaces
