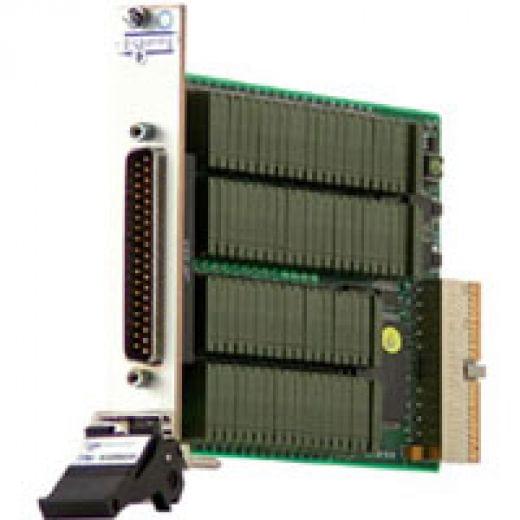

Model 40-546-001 is a high density dual 1-pole 10x4 power matrix module. It is also available in single 10x4, single 10x8 or single 20x4 relay formats: Typical applications include power routing in Functional ATE systems, specifically automotive electronics, for example testing of Engine Management Units. Larger matrices may be constructed bytructed by daisy chaining the common signals from multiple modules. However, for applications that require a very large matrix, Pickering s BRIC modules are best suited.
|Max I (A)||2|
|Max V DC||400|
