Single16x4 5A,1-Pole, PXIPowerMatrix,40-549-001

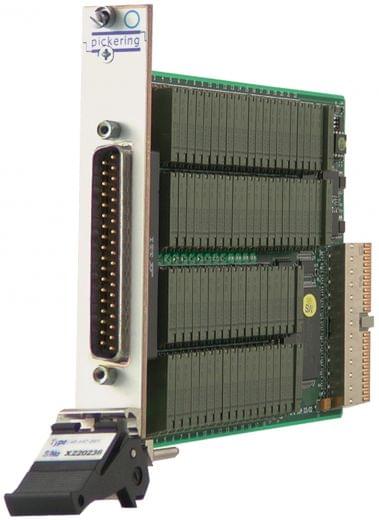

The 40-549 is a single pole power matrix module, suitable for switching inductive/capacitive loads up to 5A with 110VDC/250VAC hot switching and 400VDC/250VAC cold switching. It is available in single 16x4, single 8x8, dual 8x4 or single 8x4 configurations. Connections are made via a front panel 25 way D-type male connector.
|Max I (A)||5|
|Max V DC||400|
