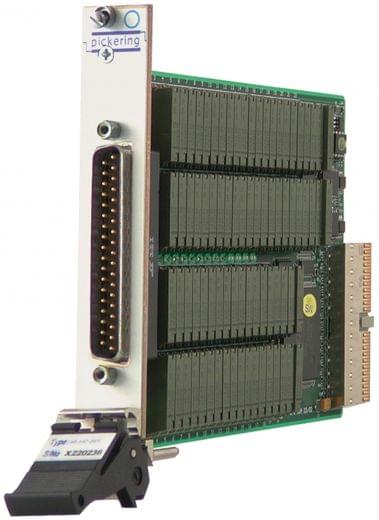

Dual8x4 5A,1-Pole, PXIPowerMatrix,40-549-003

The 40-549 is a single pole power matrix module, suitable for switching inductive/capacitive loads up to 5A with 110VDC/250VAC hot switching and 400VDC/250VAC cold switching. It is available in single 16x4, single 8x8, dual 8x4 or single 8x4 configurations. Connections are made via a front panel 25 way D-type male connector.

Features
  • High Density, High Current Switching
  • 1-Pole Power Matrix Available in Single 16x4, Single 8x8, Dual 8x4 and Single 8x4 Formats
  • 5A Current Rating With 150W/1250VA Maximum Power
  • Hot Switch to 110VDC/250VAC. Cold Switch to 400VDC/250VAC
  • High Quality Electro-Mechanical Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
X Size 8
Y Size 4
Banks 2
Poles 1
Max I (A) 5
Max V DC 400
Brand Pickering Interfaces
