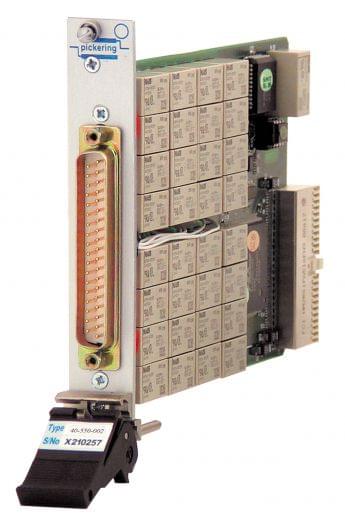

8x4,2-Pole PXIPowerMatrix,40-550-002

Connections are made via a front panel 37-way D-Type male connector or two 20-way GMCT male connectors. Used for switching inductive/capacitive loads up to 5A at 250VAC. Power matrix modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids. Used for applications requiring switching of either mains voltage or direct current. These modules are fitted with electro-mechanical power relays, gold-flash over silver alloy. A spare relay is built onto the circuit board to facilitate easy maintenance with minimum downtime.

  • 5A current rating with 150W/1250VA maximum power
  • Hot switch to 125VDC/250VAC, cold switch to 400VDC/250VAC
  • Special version available for heavy current/low duty cycle power switching (model 40-550-902)
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
Platform PXI
Switch Type EMR
X Size 8
Y Size 4
Banks 1
Poles 2
Max I (A) 5
Max V DC 400
Brand Pickering Interfaces
