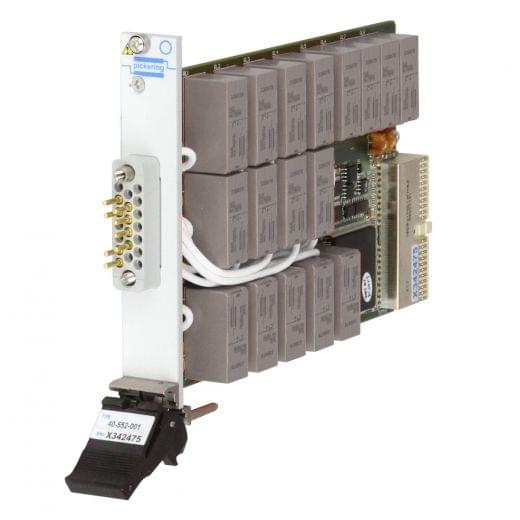

The 40-552 range of 16 Amp PXI power matrix modules is available in four configurations with matrix sizes of 8x2 and 4x4 and the ability to expand the matrix size with the Y-Axis loop-thru connections: e.g. 8x4, 12x4, 16x4, etc. (with 4x4 matrices) or 16x2, 24x2, 32x2, etc. (with 8x2 matrices). This range is capable of switching up to 16 Amps and up to 300VDC/250VAC hot switching and 400VDC/250VAC cold switching. These PXI power matrix modules are intended for switching heavy AC or DC loads or for the slave switching of large external relays, contactors, and solenoids. User connections are made via a 20-way GMCT plug which is fully support by our comprehensive range of cables and connector accessories.

  • High Density, High Current Switching
  • Optional Loop-Thru Connections
  • 4x4 or 8x2 1-Pole Matrix
  • 16 Amp Maximum Switch Current
  • Switch up to 300VDC or 250VAC
  • 448W/4000VA Maximum Power
  • VISA, IVI & Kernel drivers supplied for Windows
  • Supported by PXI or LXI chassis
Platform PXI
Switch Type EMR
X Size 4
Y Size 4
Banks 1
Poles 1
Max I (A) 16
Max V DC 400
