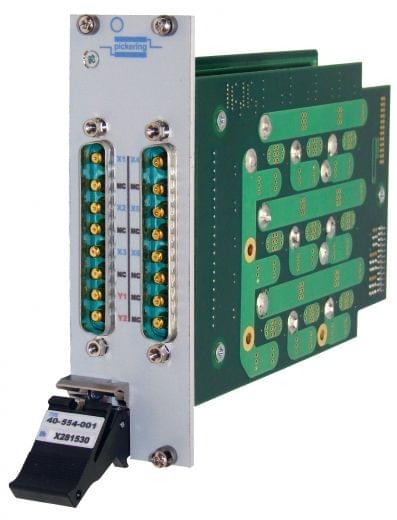

The 40-554 is a high current matrix available in 6x2 configuration occupying two slots of PXI chassis. Each matrix crosspoint uses a fully isolated solid state relay which has been designed to offer fast operation under hot switching conditions and high inrush current with no operational life degradation. Each matrix switching path can support 30A of continuous current and switch up to 40V signals. The switches can sustain inrush currents in excess of 120A. AC or DC signals can be switched since the switch is polarity insensitive. Note: The 40-554-011 supersedes the 40-554-001 which is functionally the same but with some changes in specification. A data sheet for the 40-554-001 can be found in the 40-553/554 User Manual.

Features
  • 6x2 Power Matrix
  • 30 Amp Rating at 40V
  • Very High Hot Switch Capacity
  • Very High Inrush Current Rating
  • Fast Operating Speed
  • Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
X Size 6
Y Size 2
Banks 1
Poles 2
Max I (A) 30
Max V DC 40
Brand Pickering Interfaces
