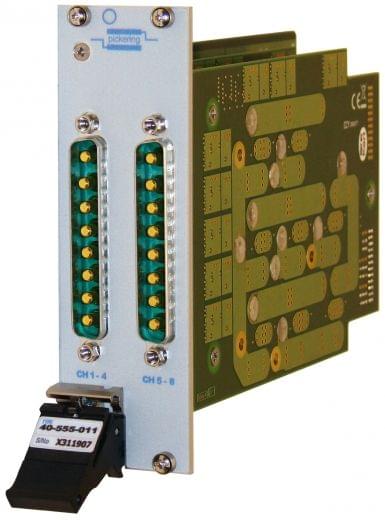

8x2 30A PXI Solid StateMatrix,40-555-011

The 40-555 is a high current matrix available in 8x2 configuration occupying two slots of PXI chassis. Each matrix crosspoint uses a fully isolated solid state relay which has been designed to offer fast operation under hot switching conditions and high inrush current with no operational life degradation. Note: The 40-555-011 supersedes the 40-555-001 which is functionally the same but with some changes in specification. A data sheet for the 40-555-001 can be found in the 40-555 User Manual.

  • 8x2 Power Matrix
  • 30 Amp Rating at 40V
  • Very High Hot Switch Capacity
  • Very High Inrush Current Rating
  • Fast Operating Speed
  • Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
X Size 8
Y Size 2
Banks 1
Poles 1
Max I (A) 30
Max V DC 40
Brand Pickering Interfaces
