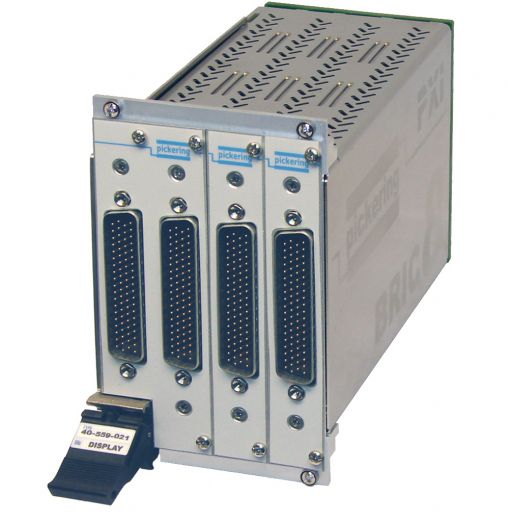

256x8,1-Pole,4-Slot BRIC,PXI Matrix(4sub-cards),40-559-401-256x8

This range of BRIC ultra-high-density large PXI matrices are available in 2, 4 or 8-slot PXI sizes to suit all high-performance matrix requirements and are constructed using Pickering Electronics' 4mm x 4mm instrumentation quality reed relays. With their high level of switching density, these PXI matrices allow a complete Functional ATE system to be housed in a single 3U PXI chassis and allow the use of much lower cost 8 or 14-slot chassis. The 40-559 matrices can be used in many industries; typical applications include automotive ECU and semiconductor package testing. Dual analog bussing for the narrower matrix options, enable completely separate matrices within a single module for parallel testing.

Features
  • 1Amp Large PXI Matrices with 2x the Density of Competing Products
  • Integrated Module with Built-In High Performance Screened Analog Bus
  • Robust 1Amp/20W Switching, With up to 4,096 Crosspoints per Module
  • Automatic Isolation Relay Switching Maximizes Bandwidth and Matrix Reliability
  • Pickering Ruthenium Reed Relays for Maximum Performance
  • Dual Analog Bus Options for Dual Matrix Flexibility within a Single Module
  • Available as 2, 4 and 8-Slot 3U PXI Modules
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type Reed
X Size 256
Y Size 8
Banks 1
Poles 1
Max I (A) 1.2
Max V DC 70
Brand Pickering Interfaces
