375x4,2A,1-Pole,8-Slot BRIC,PXI Matrix,40-568-105
VARIANT | SELLER | PRICE | QUANTITY |
---|

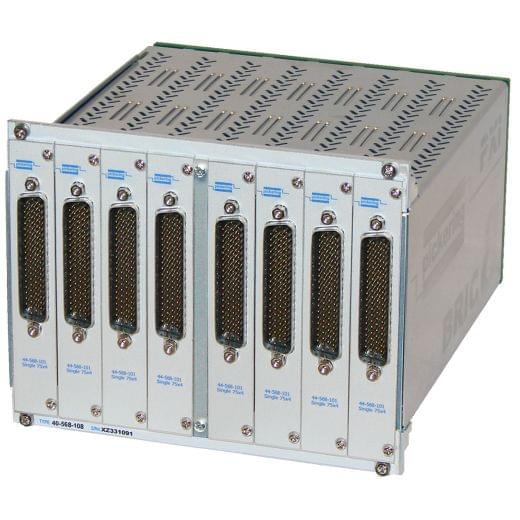

The 40-568 PXI Matrix BRIC provides a range of high density matrix modules able to switch up to 2 Amps or 200VDC/140VAC. The 40-568 BRIC modules are available in 2, 4 or 8-slot PXI sizes to suit most high performance PXI Matrix requirements, constructed using high quality electromechanical relays for high switching confidence.
Platform | PXI |
Switch Type | EMR |
X Size | 375 |
Y Size | 4 |
Banks | 1 |
Poles | 1 |
Max I (A) | 2 |
Max V DC | 200 |
Brand | Pickering Interfaces |
