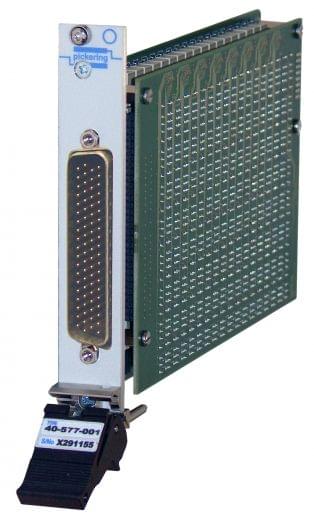

50x8,2A60W,1-Pole, PXI MatrixModule,40-577-001

The 40-575/576/577/578/579 are a range of high density matrix modules able to switch up to 2 Amps or 300VDC/250VAC. They are constructed using high quality electro-mechanical relays for high switching confidence.

Features
  • HIGHEST DENSITY SINGLE-SLOT 3U PXI 2A MATRICES WITH UP TO 448 CROSSPOINTS
  • 84x4, 64x6, 50x8, 36x12 and 28x16 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electro-mechanical Relays
  • VISA/IVI Drivers Supplied For Windows XP/Vista/7/8
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
X Size 50
Y Size 8
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
