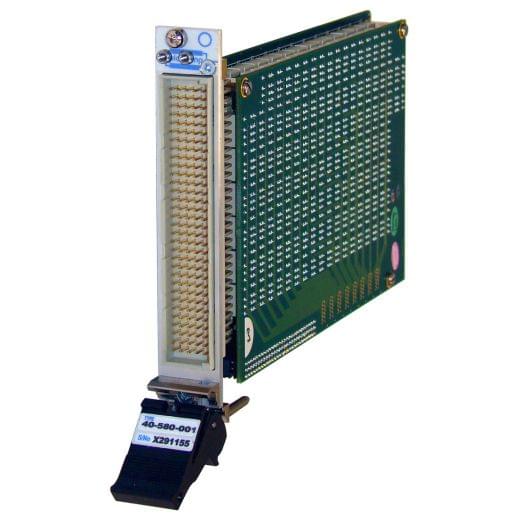

32x8,2-Pole,2A 60W PXI MatrixModule,40-580-001

The 40-580 is a 256 crosspoint PXI matrix with dual pole switching. The module consists of a 32x8 matrix of 2-pole electro-mechanical relays with 2A current handling. The module is designed for switching medium voltage and power signals, typical applications include signal routing in ATE and data acquisition systems. The user signal connection is via a robust 160 pin DIN 41612 connector that is fully supported by the wide range of Pickering Interfaces cable and connector accessories.

Features
  • High-Density Single-Slot 3U PXI 2-Pole Matrix With 256 Crosspoints
  • Configured as a 32x8 Matrix
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 150VDC/100VAC and up to 60W Max Power
  • Uses Gold Plated Contact Electro-mechanical 2-Pole Relays
  • VISA, IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 32
Y Size 8
Banks 1
Poles 2
Max I (A) 2
Max V DC 150
Brand Pickering Interfaces
