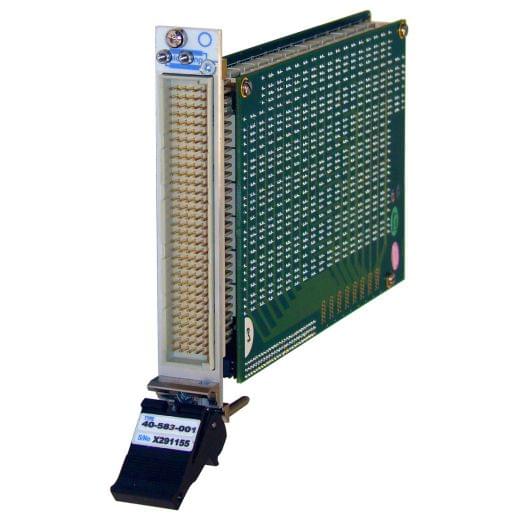

64x4,2-Pole,2A 60W PXI MatrixModule,40-583-001
The 40-583 is a 256 crosspoint PXI matrix with dual pole switching. The module consists of a 64x4 matrix of 2-pole electro-mechanical relays with 2A current handling. The module is designed for switching medium voltage and power signals, typical applications include signal routing in ATE and data acquisition systems. The user signal connection is via a robust 160 pin DIN 41612 connector that is fully supported by the wide range of Pickering Interfaces cable and connector accessories.
|Max I (A)||2|
|Max V DC||300|
