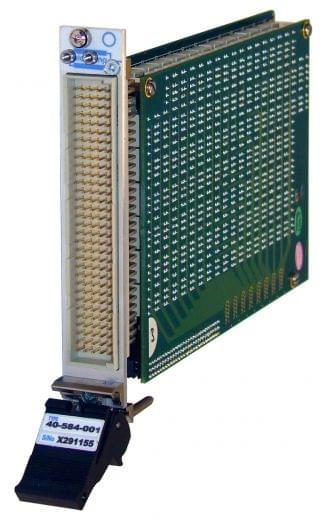

Our model 40-584, along with the following models 40-584, 40-585A, 40-586A and 40-587A are high-density single pole PXI matrices each supporting 256 crosspoints. All models use gold-plated contact electromechanical relays. The PXI matrix modules are designed for switching medium voltage and power signals. The user signal connection is via a robust 78, 50 or 37 pin D-Type or 160 pin DIN 41612 connector that is fully supported by the wide range of our cable and connector accessories.

Features
  • High Density Single-Slot 3U PXI 2A Matrix with 256 Crosspoints
  • 128x2, 64x4, 32x8 and 16x16 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Uses Gold-Plated Contact Electromechanical Relays
  • VISA/IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 128
Y Size 2
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
