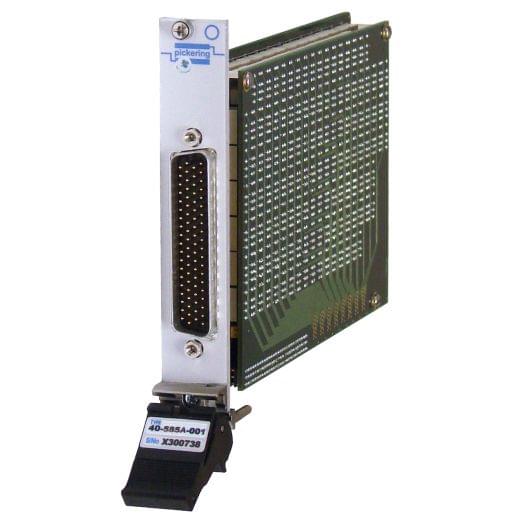

64x4,1-Pole,2A 60W PXI MatrixModule,40-585A-001

Our model 40-585A, along with the following models 40-584, 40-586A, 40-587A are high-density single pole PXI matrices each supporting 256 crosspoints. All models use gold-plated contact electromechanical relays. The PXI matrix modules are designed for switching medium voltage and power signals. The user signal connection is via a robust 78, 50 or 37 pin D-Type or 160 pin DIN 41612 connector that is fully supported by the wide range of our cable and connector accessories.

  • High-Density Single-Slot 3U PXI 2-Pole Matrix With 256 Crosspoints
  • 128x2, 64x4, 32x8 and 16x16 Options
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 150VDC/100VAC and up to 60W Max Power
  • Uses Gold Plated Contact Electro-mechanical 2-Pole Relays
  • VISA, IVI & Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by our Diagnostic Test Tools
Platform PXI
Switch Type EMR
X Size 64
Y Size 4
Banks 1
Poles 1
Max I (A) 2
Max V DC 300
Brand Pickering Interfaces
