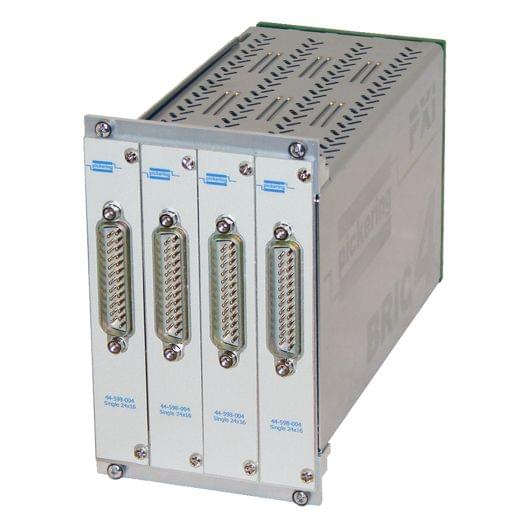

48x16,2A,1-Pole,4-Slot BRIC,PXI Matrix,40-598-002

The 40-598 PXI Matrix BRIC provides a range of high density matrix modules able to switch up to 2 Amps or 100VDC/70VAC. The 40-598 BRIC modules are available in 2, 4 or 8-slot PXI sizes to suit most high performance PXI Matrix requirements, constructed using high quality electromechanical relays for high switching confidence.

Features
  • Very High Density 2A Matrix With Up To 768 Crosspoints Per 2-Slot BRIC, 1536 Crosspoints Per 4-Slot BRIC and 3072 Crosspoints Per 8-Slot BRIC (384 Crosspoints Per PXI Slot
  • Integrated PXI Matrix Module With Built In High Performance Screened Analog Bus
  • 2-Slot Configurations to 48x16 (1-Pole), 4-Slot Configurations to 96x16 (1-Pole) and 8-Slot Configurations to 192x16 (1-Pole)
  • Switch Up To 100VDC/70VAC, 2A, 60W
  • Automatic Analog Bus Isolation Switching Maximizes Bandwidth and Matrix Reliability
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Reduced Service and Maintenance Costs Through The Use of BIRST Diagnostics
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
X Size 48
Y Size 16
Banks 1
Poles 1
Max I (A) 2
Max V DC 100
Brand Pickering Interfaces
