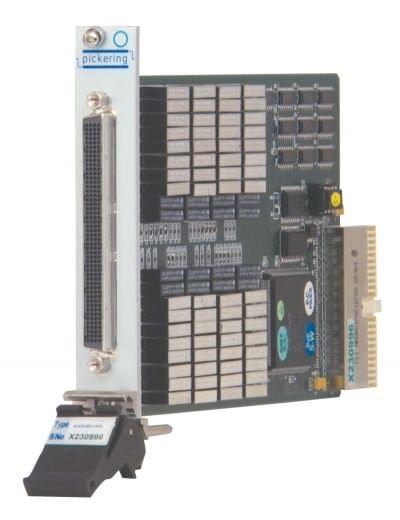

PXI MUX 2 Banks of 32 Channel 2 Pole - 40-610-022-2/32/2

This series of high density multiplexer modules feature a wide range of switching configurations, especially useful where a large number of small multiplexers are required. Typical applications include signal routing in ATE and data acquisition systems. Connections are made via a front panel 200-pin connector. Inter-bank linking relays allow multiplexer size to be increased in multiples of in multiples of three by joining the common terminals of adjacent banks. Closing one linking switch produces a 6-channel multiplexer, closing all linking switches produces an 54-channel multiplexer

  • Range includes a choice of 8, 4, 2 or 1 Multiplexers per Module
  • Up to 144 Switch Pins Available with 1 or 2-Pole Switching Formats
  • All Versions Use High Reliability Pickering Reed Relays
  • Fast Operating Speed <500us
  • Switch up to 150VDC/100VAC, 1.2A with 20W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • Factory Reconfigurable to Different Configurations as Needs Change
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
Banks 2
Poles 2
Max I (A) 1.2
Max V DC 150
Channels 32
Brand Pickering Interfaces
