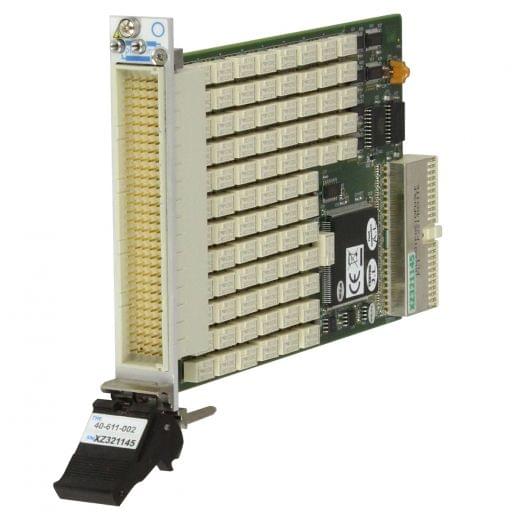

PXI 2A Multiplexer 79-Channel 2-Pole

The 40-611 Very High Density multiplexer module is available in 158-Channel 1-Pole or 79-Channel 2-Pole configurations. Both configurations use high quality electro-mechanical signal relays allowing each channel to switch current up to 2A and voltage up to 300VDC/250VAC.

Features
  • Highest Density Multiplexers in PXI
  • Available as a 158-Channel 1-Pole or a 79-Channel 2-Pole Multiplexer
  • Low Cost per Channel
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 1
Poles 2
Max I (A) 2
Max V DC 300
Channels 79
Brand Pickering Interfaces
