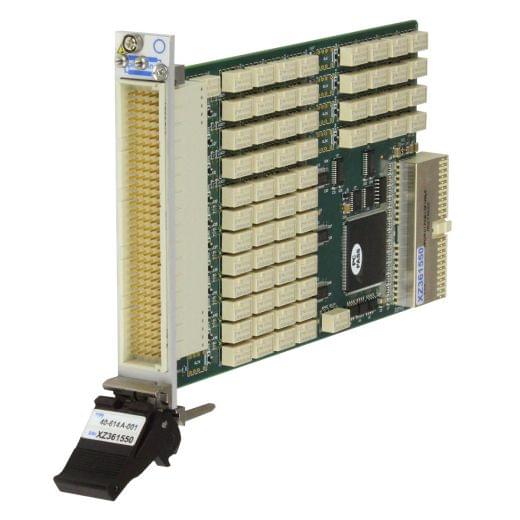

This 16-bank, 8-channel, 1 pole version is part of the 40-614A High Density 2A multiplexer module range that is available in 20 configurations (see Also in this Range link above). All configurations use high quality electro-mechanical signal relays allowing each channel to switch current up to 2A and voltage up to 300VDC/250VAC. These 2A multiplexer modules are designed for signal routing in ATE and data acquisition systems. User connections are made via a front panel 160-pin DIN 41612 connector which is fully supported by our range of cabling and connector solutions. The modules may be operated as a conventional multiplexer with break-before-make action when a new channel is selected. In addition, for 2, 4, 8, 16 and 32-pole versions, multiple channels may be simultaneously selected (not available for 1-pole versions). Larger multiplexers may be constructed by daisy-chaining the common signals from multiple PXI modules. These 2A multiplexer modules are designed for signal routing in ATE and data acquisition systems. User connections are made via a front panel 160-pin DIN 41612 connector which is fully supported by our range of cabling and connector solutions. The modules may be operated as a conventional multiplexer with break-before-make action when a new channel is selected. In addition, for 2, 4, 8, 16 and 32-pole versions, multiple channels may be simultaneously selected (not available for 1-pole versions). Larger multiplexers may be constructed by daisy-chaining the common signals from multiple PXI modules.
