PXI 2A Multiplexer, 8-Bank, 4-Channel 4-Pole - 40-614A-005

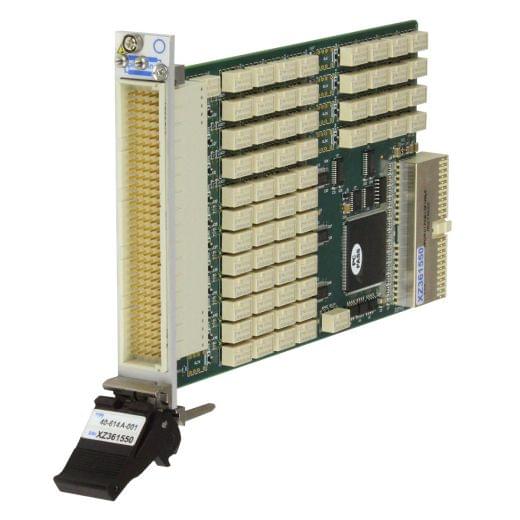

This 16-bank, 8-channel, 1 pole version is part of the 40-614A High Density 2A multiplexer module range that is available in 20 configurations (see Also in this Range link above). All configurations use high quality electro-mechanical signal relays allowing each channel to switch current up to 2A and voltage up to 300VDC/250VAC. These 2A multiplexer modules are designed for signal routing in ATE and data acquisition systems. User connections are made via a front panel 160-pin DIN 41612 connector which is fully supported by our range of cabling and connector solutions. The modules may be operated as a conventional multiplexer with break-before-make action when a new channel is selected. In addition, for 2, 4, 8, 16 and 32-pole versions, multiple channels may be simultaneously selected (not available for 1-pole versions). Larger multiplexers may be constructed by daisy-chaining the common signals from multiple PXI modules. These 2A multiplexer modules are designed for signal routing in ATE and data acquisition systems. User connections are made via a front panel 160-pin DIN 41612 connector which is fully supported by our range of cabling and connector solutions. The modules may be operated as a conventional multiplexer with break-before-make action when a new channel is selected. In addition, for 2, 4, 8, 16 and 32-pole versions, multiple channels may be simultaneously selected (not available for 1-pole versions). Larger multiplexers may be constructed by daisy-chaining the common signals from multiple PXI modules.

Features
  • 20 Configurations
  • 1, 2, 4, 8 or 16 Multiplexer Banks
  • Channel Counts of 4, 8, 16, 32, 64, or 128
  • Available With 1, 2, 4, 8, 16 or 32 Poles
  • 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
Banks 8
Poles 4
Max I (A) 2
Max V DC 300
Channels 4
Brand Pickering Interfaces
