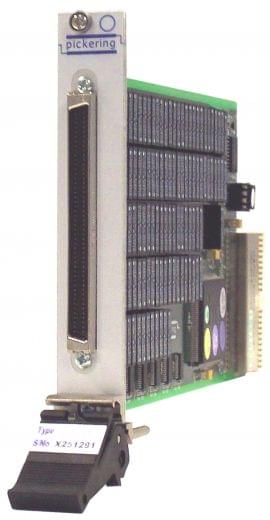

PXI 16 Bank 5 Channel 1 Pole Multiplexer - 40-616-021-16/5/1

The 40-616 16-Bank, 5-Channel, 1-Pole Multiplexer Module forms part of the System 40 PXI Programmable Switching system. The Module consists of 16 electrically isolated banks of multiplexers controlled by a PXI/ PCI interface. Each bank is a 1 to 5 multiplexer and operates with break-before-make action when a new channel is selected. Any Individual multiplexer bank can have a channel set by itself, alternatively, multiple banks can have channels selected simultaneously. The module is suitable for cascading in applications that require large multiplexer systems, it is also suitable for test systems that require the switching of a large number of signals in parallel.

  • 16 Separate Multiplexers in One Module
  • Each Multiplexer is Single Pole, 5-Way
  • Features Isolation Switches to Reduce Signal Loading
  • Multiplexer Channels Can be Set Individually
  • Any Number of Multiplexer Channels Can be Set Simultaneously
  • Switches Up To 100 Volts, 1 Amp, 20 Watt.
  • Uses High Reliability Ruthenium Reed Relays for Maximum Performance
  • Single PCB Construction With Leaded Relays Allow Easy Maintenance
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type Reed
Banks 16
Poles 1
Max I (A) 1
Max V DC 100
Channels 5
