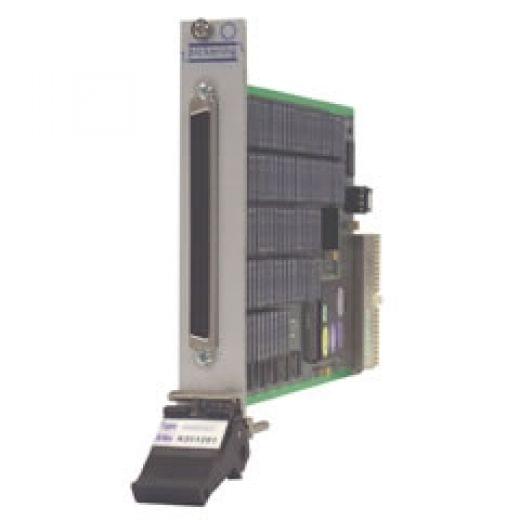

PXI 18 Bank, 3 Channel, 1 Pole Multiplexer - 40-617-021

The 40-617 18-Bank, 3-Channel, 1-Pole Multiplexer Module forms part of the System 40 PXI Programmable Switching system. The Module consists of 18 electrically isolated banks of multiplexers controlled by a PXI/PCI interface. Each bank is a 1 to 3 multiplexer and operates with break-before-make action when a new channel is selected. Any Individual multiplexer bank can have a channel set by itself, alternatively, multiple banks can have channels selected simultaneously. Inter-bank linking relays allow multiplexer size to be increased in multiples of 3 by joining the common terminals of adjacent banks. Closing one linking switch produces a 6 channel multiplexer, closing all linking switches produces an 54 channel multiplexer.

  • 18 Separate Multiplexers in One Module
  • Each Multiplexer is Single Pole, 3-Way
  • Isolation Switches to Reduce Signal Loading
  • Inter-Bank Linking Relays Allow Multiplexer Size to be Increased in Multiples of 3
  • Includes 12 SPST Uncommitted Relays
  • Multiplexer Channels Can be Set Individually
  • Switches Up To 100 Volts, 1 Amp, 20 Watt
  • Uses High Reliability Ruthenium Reed Relays For Maximum Performance
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type Reed
Banks 18
Poles 1
Max I (A) 1
Max V DC 100
Channels 3
Brand Pickering Interfaces
