PXI Source Switching Module

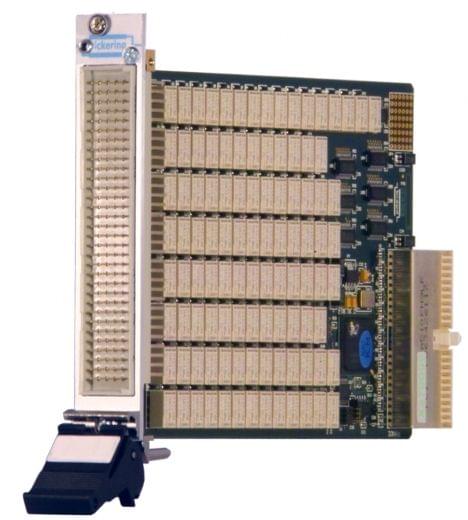

The 40-618 PXI Source Switching Module consists of 12 separate 4-channel multiplexers and 44 uncommitted SPST relay contacts in a single width PXI module.

Typical applications include signal routing for avionics test systems that conform to the ARINC 608A specification.

Features
  • Designed to Support the Requirements of ARINC 608A Specification
  • 44xSPST Relay Contacts and 12 Banks of 4-Channel MUX in a Single PXI Module
  • Uses High-Quality Electro-mechanical Relays
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • Breakdown Voltage >500V
  • VISA and Kernel Drivers Supplied for Windows XP/Vista/7/8
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 12
Poles 1
Max I (A) 2
Max V DC 300
Channels 4
Brand Pickering Interfaces
