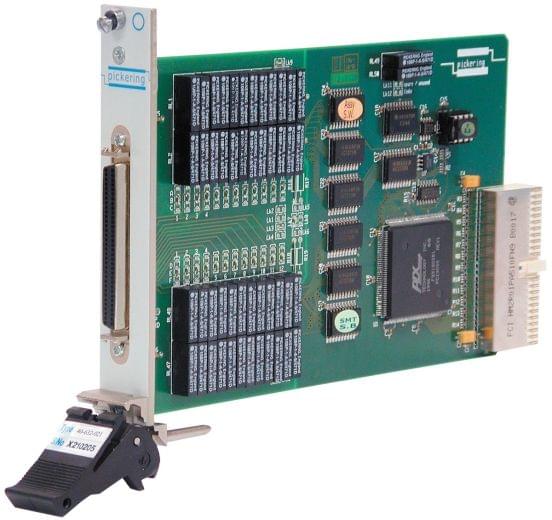

PXI Multiplexer Single 24 Ch 2 Pole - 40-632-021-24/2

This series of general purpose multiplexer modules feature a wide range of switching configurations. Typical applications include signal routing in ATE and data acquisition systems. Connections are made via a front panel 68-pin connector. Available reed relay formats are 1-pole, 2-pole and 4-pole.

Features
  • Part of Versatile Multiplexer Series with Single and Dual Operation
  • 40-630 Dual 16-Channel 2-Pole Multiplexer, Available in 4 Other Configurations
  • 40-632 Dual 24-Channel 1-Pole Multiplexer, Available In 2 Other Configurations
  • 1, 2 & 4-Pole Switching Formats
  • High Reliability Pickering Reed Relays
  • Fast Operating Speed <500us
  • Switch up to 150 Volts, 1.2A With 20W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type Reed
Banks 1
Poles 2
Max I (A) 1.2
Max V DC 150
Channels 24
Brand Pickering Interfaces
