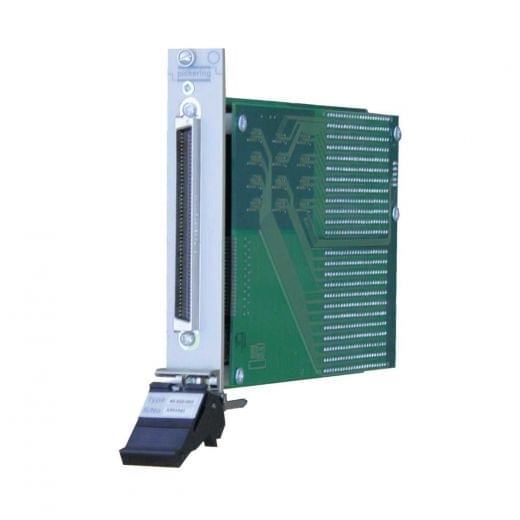

PXI High Density MUX 94-Channel 1-Pole - 40-640-022-94/1

This series of high density multiplexer modules feature a choice of switching configurations. Typical applications include signal routing in ATE and data acquisition systems. The multiplexer module is available as a 47-channel 2-pole, 94-channel 1-pole or 47-channel 1-pole with screened relays. Connections are made via a front panel 96-pin connector. It may be operated as a conventional multiplexer with break-before-make action when a new channel is selected. In addition multiple channels may be simultaneously selected (not available for this 1-pole version)

  • Range is available in: 47-Channel 2-Pole, 94-Channel 1-Pole or Screened 47-Channel 1-Pole Configurations
  • Screened Option For Improved Noise Performance
  • All Versions Use High Reliability Pickering Reed Relays
  • Fast Operating Speed <500us
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • Switch up to 150 Volts, 1.2A with 20W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
Banks 1
Poles 1
Max I (A) 2
Max V DC 150
Channels 94
Brand Pickering Interfaces
