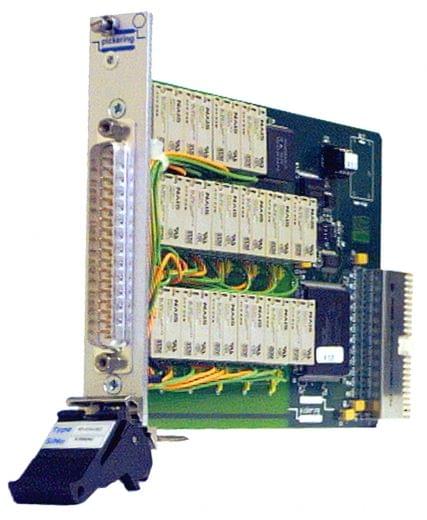

16 Channel Power PXI Multiplexer, 2 Pole - 40-650-002

The 40-650-002 is a PXI 16 Channel Power Multiplexer, suitable for switching inductive/ capacitive loads up to 5A at 250VAC.

Power multiplexer modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids. It is suitable for applications requiring switching of either mains voltage or DC.

Features
  • 2-Pole Switching
  • 5A Current Rating With 175W/1250VA Maximum Power
  • Hot Switch to 125VDC/250VAC
  • Cold Switch to 400VDC/250VAC
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 1
Poles 2
Max I (A) 5
Max V DC 400
Channels 16
Brand Pickering Interfaces
