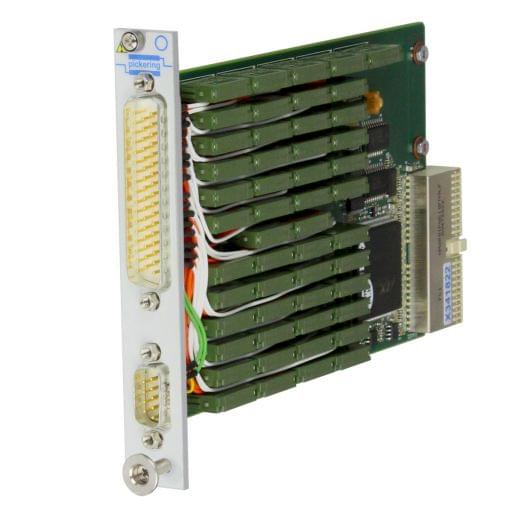

PXI 5A Mux 1-Bank 48-Ch Isolated COM - 40-651-011
This range of high density power multiplexer modules is suitable for switching inductive/capacitive loads up to 5A at 250VAC. It is available in the following 1-pole multiplexer formats: 1-bank 48-channel 2-bank 24-channel 4-bank 11-channel 8-bank 5-channel Connections are made via a front panel 50-way male D-type connector. Power multiplexer modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids.
|Max I (A)||5|
|Max V DC||110|
