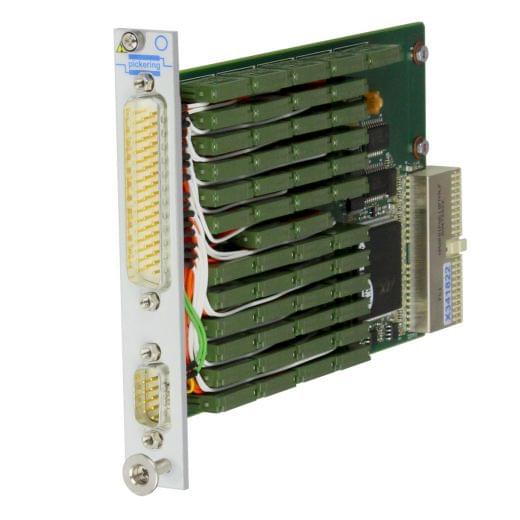

PXI 5A Mux 2-Bank 24-Ch Isolated COM + Ind Isolation - 40-651-112

This range of high density power multiplexer modules is suitable for switching inductive/capacitive loads up to 5A at 250VAC. It is available in the following 1-pole multiplexer formats: 1-bank 48-channel 2-bank 24-channel 4-bank 11-channel 8-bank 5-channel Connections are made via a front panel 50-way male D-type connector. Power multiplexer modules are intended for switching heavy AC or DC loads or for slaving up to large external relays, contactors and solenoids.

Features
  • High Density 1-Pole Power Multiplexer
  • 5A Current Rating with 150W/1250VA Maximum Power
  • Switch Up To 110VDC/250VAC
  • High Quality Electro-mechanical Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 2
Poles 1
Max I (A) 5
Max V DC 110
Channels 24
Brand Pickering Interfaces
