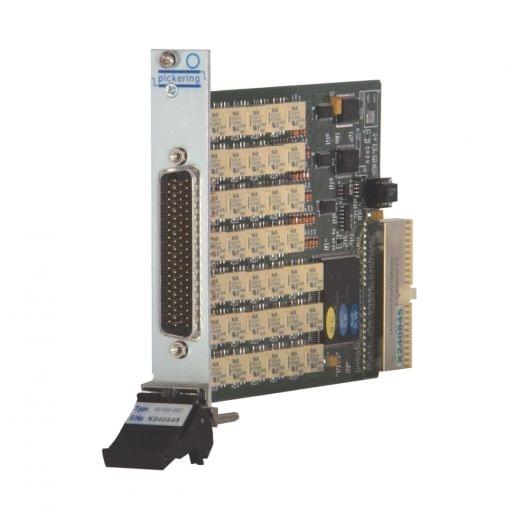

PXI 38-Channel, 2-Pole, 2 Amp Multiplexer

The 40-655-001 is a 38-channel multiplexer with 2-pole switching, suitable for signals to 2 Amp, 220VDC/125VAC. It offers the highest switching density in its class for medium power/voltage signals.

Specifically designed for switching POTS, ISDN or xDSL telephony signals. Bandwidth for most configurations is typically >25MHz. It is paired with a very similar module, 40-655-001, a multi-banked multiplexer.

Please contact Pickering sales office for more assistance with Telecom switching applications.

Platform PXI
Switch Type EMR
Banks 1
Poles 2
Max I (A) 2
Max V DC 125
Channels 38
Brand Pickering Interfaces

No Review
