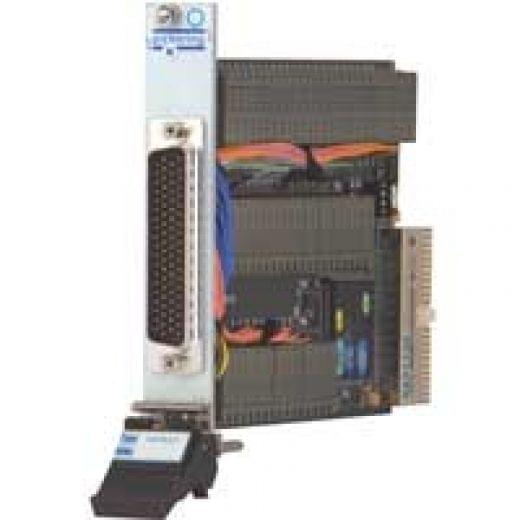

PXI 8 Banks of 8 Chan 1 Pole MUX - 40-657-001-8/8/1

40-657 High Density Power Multiplexer Modules are available in a choice of configurations, containing up to 8 separate multiplexers, all 1-pole switching. They are suitable for switching signals to 110VDC/250VAC at 2Amps, 90W.

Features
  • High Density 2Amp Multiplexer
  • 8-Banks of 8-Chan, 4-Banks of 16, 2-Banks of 32 and Single 64-Chan Multiplexer
  • 1-Pole Switching
  • 2A Current Rating With 90W/500VA Maximum Power
  • Hot Switch to 110VDC/250VAC
  • Cold Switch to 400VDC/250VAC
  • VISA and Kernel Drivers Supplied for Windows XP/Vista/7/8
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 8
Poles 1
Max I (A) 2
Max V DC 400
Channels 8
Brand Pickering Interfaces
