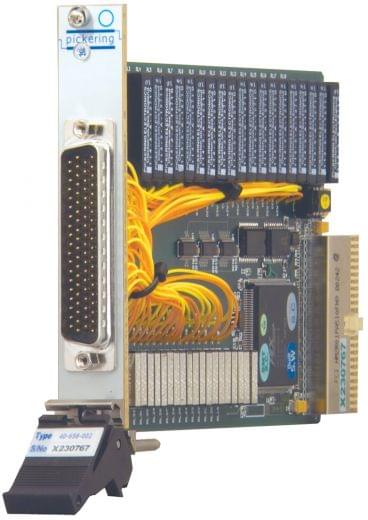

PXI 2 Pole 18 way Mux with 2 Pole 18 way sen - 40-658-002

This PXI multiplexer combines a 2-pole 18-way power distribution MUX with a second lower power 2-pole 18-way MUX in one convenient single slot PXI module. The module is ideal for power distribution where power and sense signals are required to be connected to an array of devices under test. This multiplexer is also convenient for making 4 wire low resistance measurements by supplying the resistor under test with high current through the power MUX and sensing the voltage drop through the sense MUX.

Features
  • 2-Pole 18-Way Power MUX 2.8 Amps Peak Current
  • 2-Pole 18-Way Sense MUX
  • Compact Solution for 4-Wire Power Distribution and Regulation
  • Ideal for 4-Wire Resistance Measurements
  • Uses High Reliability Reed Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Reed
Banks 2
Poles 2
Max I (A) 2
Max V DC 200
Channels 18
Brand Pickering Interfaces
