PXI 8 Bank 8 Channel 2 Pole Multiplexer

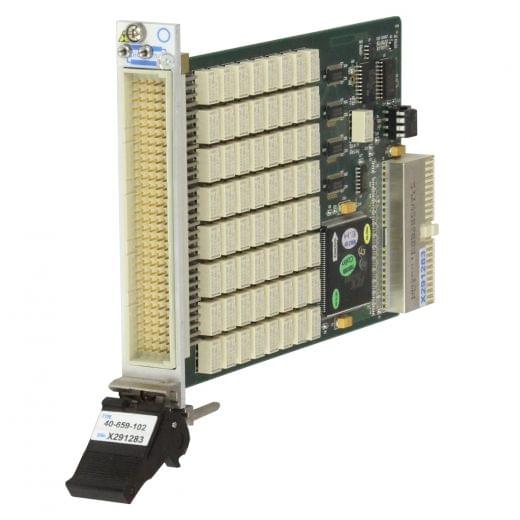

Model 40-659 is an 8 Bank 8 Channel Multiplexer module with 2-pole switching, It uses high quality electromechanical relays and is suitable for switching signals up to 2Amp, 300VDC/250VAC. The 40-659 module is suitable for multiplexer applications where two signals are required to be switched simultaneously, for example send and return signals in a telecoms system. It is also suitable for applications where reed relay based multiplexers do not have sufficient power handling capability such as switching medium power AC or DC loads or for slaving external relays, contactors and solenoids.

Features
  • High Density Multiplexer With 2Amp Current Carrying Capability
  • 8 Separate 8-Channel Multiplexer Banks
  • 2-Pole Switching
  • Operating Speed <3ms
  • Maximum Current 2A Hot or Cold Switching
  • Switch up to 300VDC/250VAC and up to 60W Max Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 8
Poles 2
Max I (A) 2
Max V DC 300
Channels 8
Brand Pickering Interfaces
