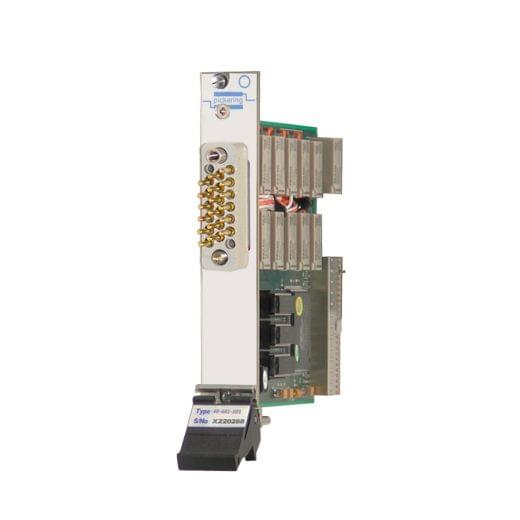

PXI 10A Power MUX 8-Bank 4-Channel - 40-661-001

The 40-661 is a single pole power multiplexer module, suitable for switching inductive/capacitive loads up to 10A with 125VDC/250VAC hot switching and 400VDC/250VAC cold switching. The multiplexer is available in 8-bank 4-channel, 5-bank 6-channel, 4-bank 8-channel, 2-bank 16-channel and 1-bank 32-channel formats. Also, 4-bank 4-channel, 2-bank 8-channel and 1-bank 16-channel half density configurations are available. Signal connections are made via front panel mounted 20-way GMCT plugs.

Features
  • High Density, High Current Switching
  • 1-Pole Power Multiplexer Available as 8-Bank 4-Channel, 5-Bank 6-Channel, 4-Bank 8-Channel, 2-Bank 16-Channel or 1-Bank 32-Channel
  • 3 Half Density Options
  • 10A Current Rating With 300W/2500VA Maximum Power
  • Hot Switch to 125VDC/250VAC, Cold Switch to 400VDC/250VAC
  • High Quality Electro-mechanical Relays
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 8
Poles 1
Max I (A) 10
Max V DC 400
Channels 4
Brand Pickering Interfaces
