PXI Very High Power DC Multiplexer, 4-Channel, 20A, 28V - 40-664-002

PXI Very High Power DC Multiplexer, 4-Channel, 20A, 28V

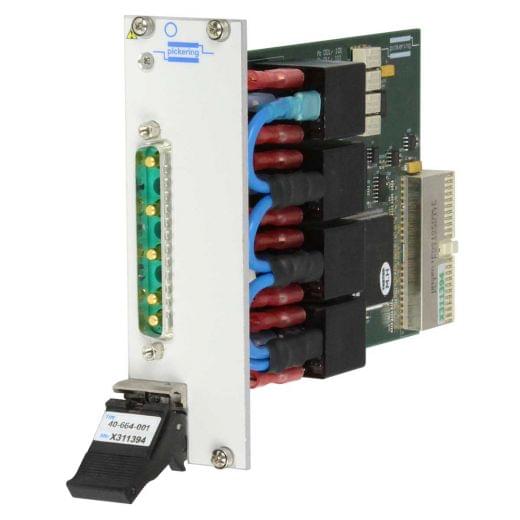

The 40-664-002 is a high power switching module configured as a four channel multiplexer. It is capable of switching inductive/capacitive loads up to 20A at 28VDC.

The multiplexer is suitable for switching heavy loads or for slave switching large external relays, contactors and solenoids. In particular these relay modules are designed for automotive test applications requiring the switching of DC voltage at high current.
This version is suitable for truck system test applications. The Module is fully compliant with PXI and cPCI specifications and occupies two 3U slot positions. Connection to the relays is made via a front panel high power D-type connector..
  • Very High Power EMR Multiplexer Module
  • Available in 20 Amp and 40 Amp Versions
  • Capable of Switching up to 14 Volts DC for Automotive Test Applications
  • 28 Volt Version Suitable for Truck Applications
  • 2 Slot PXI Module
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 1
Poles 1
Max I (A) 20
Max V DC 28
Channels 4
Brand Pickering Interfaces
