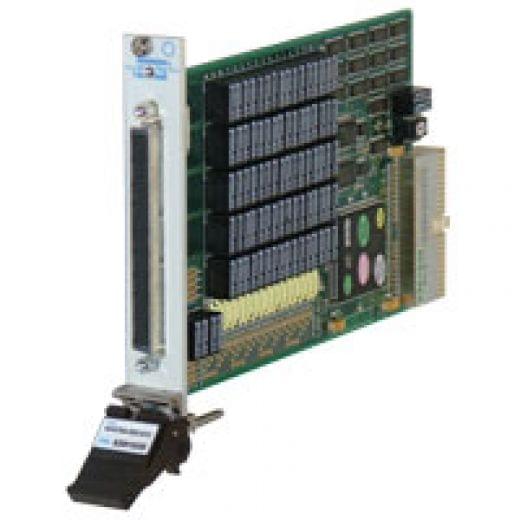

PXI Very High Density Mux Dual 10 Ch 8 Pole - 40-670A-022-D/10/8

The 40-670A series of very high density multiplexer modules feature a wide range of switching configurations. Typical applications include signal routing in ATE and data acquisition systems. The 40-670 multiplexer may be operated as a conventional multiplexer with break-before-make action when a new channel is selected.In addition multiple channels may be simultaneously selected (not available in 1 pole mode).

Features
  • Very High Density Multiplexer
  • Up to 198 Switch Pins Available with 1, 2, 4, 8, 16 or 32 Pole Switching Formats
  • Screened Option For Improved Noise Performance
  • All Versions Use High Reliability Pickering Reed Relays
  • Fast Operating Speed <500�s
  • Switch up to 150VDC/100VAC, 0.5A with 10W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI and LXI Chassis
  • Diagnostic Tool Available (PI-MXT)
Platform PXI
Switch Type Reed
Banks 2
Poles 8
Max I (A) 0.5
Max V DC 150
Channels 10
Brand Pickering Interfaces
