PXI Very High Density MUX 10 Chan 16 Pole

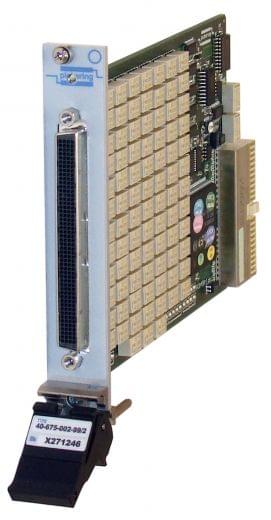

The 40-675 series of very high density low cost multiplexer modules are available in a versatile range of switching configurations. The modules are supplied pre-configured in one of six multiplexer modes suitable for signal routing in high channel count ATE and data acquisition systems. The modules use high quality electromechanical signal relays allowing each channel to switch current up to 1A at 150VDC/100VAC. Connections are made via a front panel 200-pin connector.

Features
  • Very High Density Low Cost Multiplexer
  • Up to 198 Switch Pins Available
  • Available with 1, 2, 4, 8, 16 or 32 Pole Swiching Formats
  • High Density Electromechanical Relays
  • Operating Speed 3ms Typical
  • Switch up to 150VDC/100VAC, 1A with 60W Max Power
  • Automatic Isolation Switches Reduce Capacitive Loading in Large Systems
  • Single PCB Construction With Leaded Relays Allow Easy Maintenance
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 1
Poles 16
Max I (A) 1
Max V DC 150
Channels 10
Brand Pickering Interfaces
