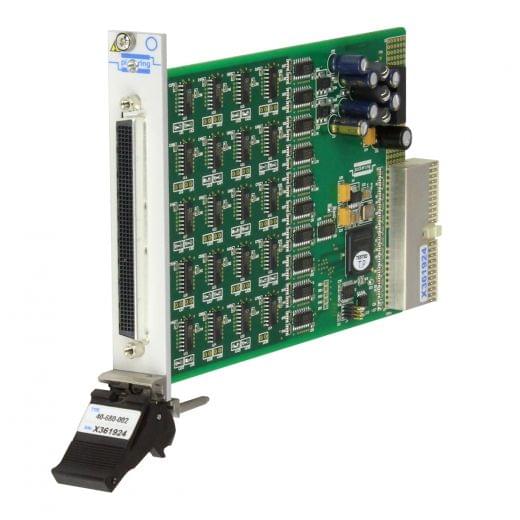

PXI Solid State MUX, 10 bank, 16 channel - 40-680-002

Based on FET switches, the multiplexers have no wear out mechanism and include fault protection that ensures the multiplexer automatically disconnects when PXI power is not applied. Available configurations for the 40-680 range vary from a single 160 to 1 MUX to a 20-bank, 8 to 1 MUX in a single PXI module.

  • Choice of Multiplexer Configurations Available
  • Fast Operation
  • Long Service Life
  • Fault Protection to Greater Than 40V
  • Ideal for Low Current and Low Voltage Applications
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
Banks 10
Poles 1
Max I (A) 0.02
Max V DC 15
Channels 16
Brand Pickering Interfaces
