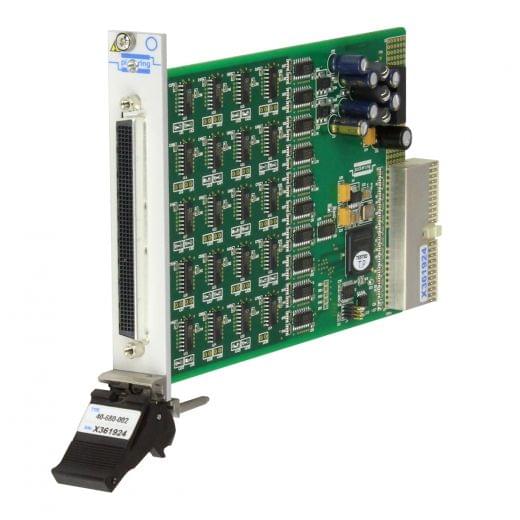

PXI Solid State MUX, 2 bank, 80 channel - 40-680-005
Based on FET switches, the multiplexers have no wear out mechanism and include fault protection that ensures the multiplexer automatically disconnects when PXI power is not applied. Available configurations for the 40-680 range vary from a single 160 to 1 MUX to a 20-bank, 8 to 1 MUX in a single PXI module.
|Switch Type||Solid State|
|Max I (A)||0.02|
|Max V DC||15|
