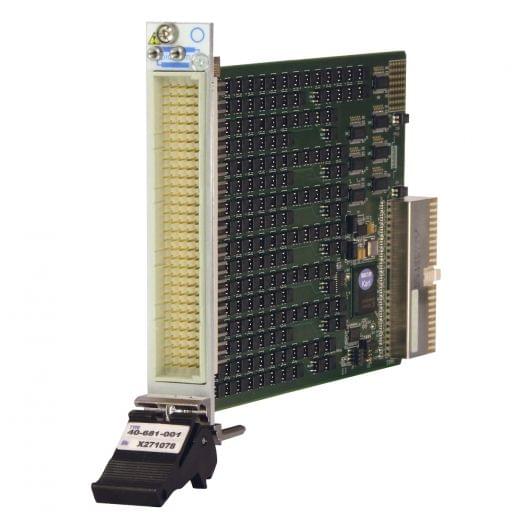

Versatile PXI Solid State Multiplexer - 40-681-001

Our model 40-681 is a very high-density versatile PXI Multiplexer module featuring a wide range of selectable switching configurations. The 40-681 is especially useful where a high-density MUX array is required that can adapt to different test configurations for different test targets, or where a test system may have to be reconfigured in the future.

This PXI multiplexer uses high performance solid state relays to ensure long service life even when hot switching into capacitive loads. The 40-681 can sustain 1.5A for 100ms on hot or cold switching.

Features
  • Versatile Solid State Multiplexer
  • Configurable Architecture
  • 350mA Hot or Cold Switching
  • Surge Current of 1.5A for 100ms
  • 60 Volt Switching
  • Fast Operation and Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
Banks 8
Poles 2
Max I (A) 0.35
Max V DC 60
Channels Configurable Architecture
Brand Pickering Interfaces
