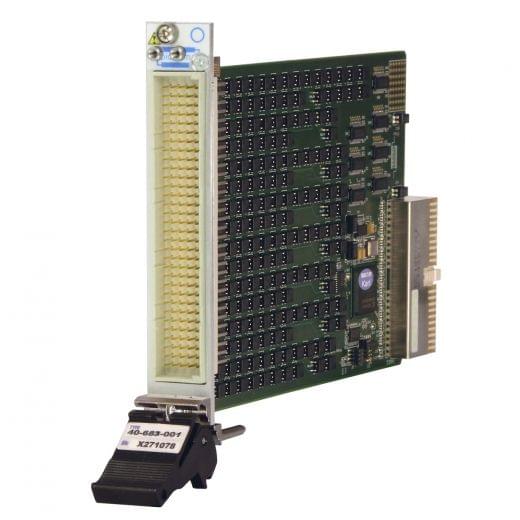

PXI Solid State Versatile Multiplexer - 40-683-001

The 40-683 Very High Density Versatile Multiplexer module features a wide range of selectable switching configurations. The 40-683 is especially useful where a high density MUX array is required that can adapt to different test configurations for different test targets, or where a test system may have to be reconfigured in the future. The 40-683 uses high performance solid state switching to ensure a service life of greater than 10 years and fast operation.

Features
  • Versatile Solid State Multiplexer
  • Configurable Architecture
  • 125mA Hot or Cold Switching
  • 100 Volt Switching
  • Fast Operation and Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
Banks 8
Poles 2
Max I (A) 0.125
Max V DC 100
Channels Configurable Architecture
Brand Pickering Interfaces
